HBZ Front Bumper - Installation Observations

[Baja Storm]

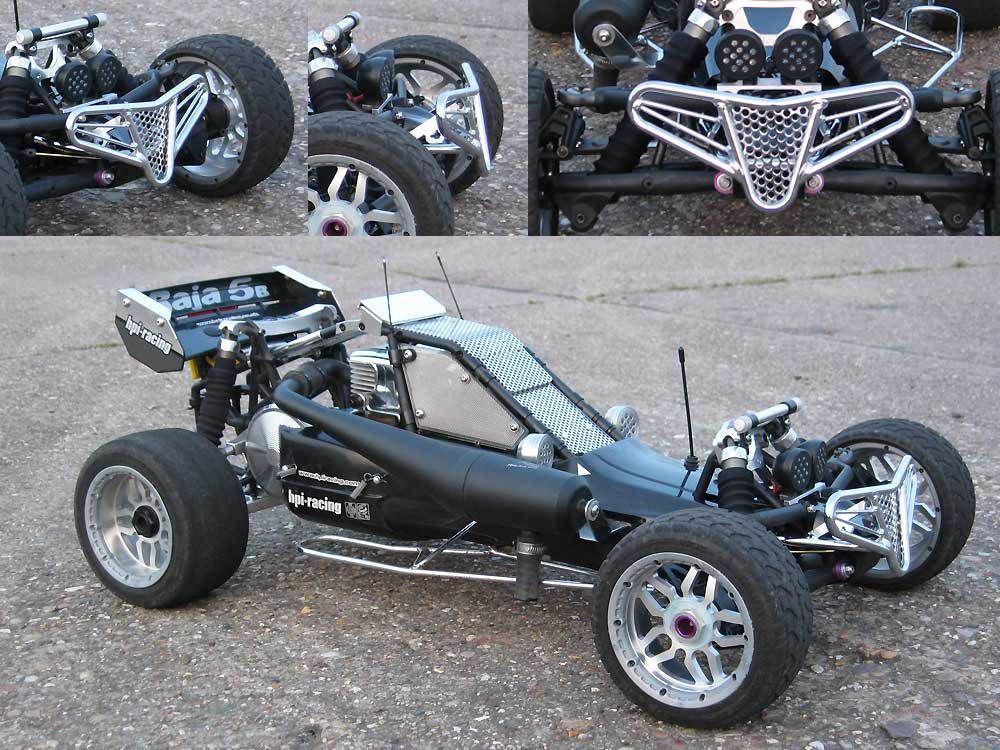

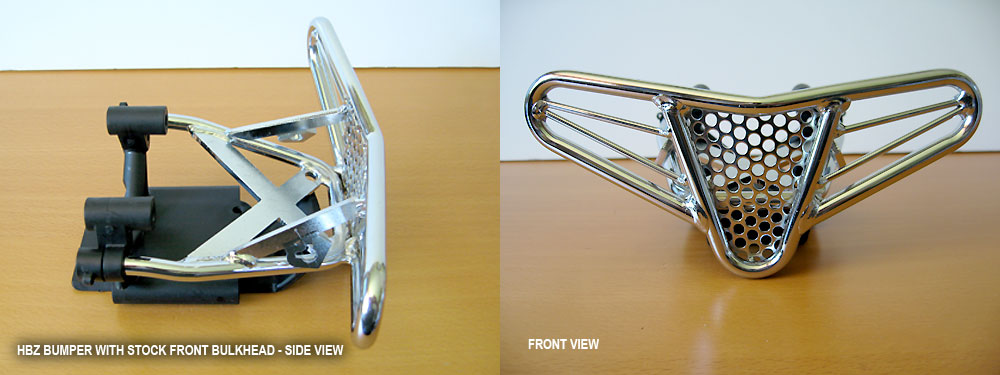

Thought I’d try out the HBZ front bumper – I like the look of it – seems to compliment to the perforated theme.

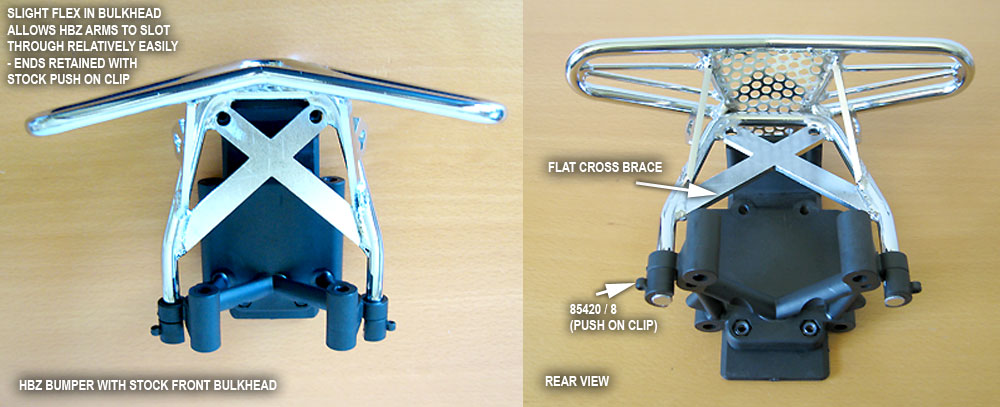

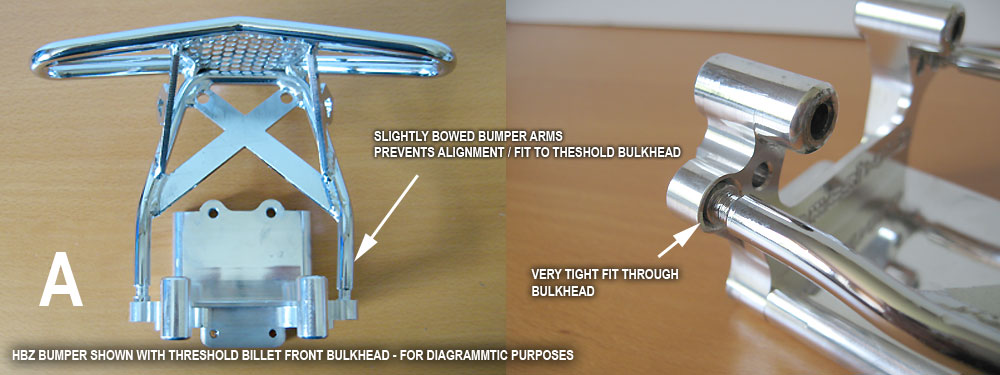

I have been running with the Threshold billet bulkhead but unfortunately found out that the HBZ bumper would not fit with it. pic A

Wasn’t pleased about it, ‘cause I think the Threshold one is a superb piece of work – but on reflection it’s probably a good thing as something has to be the weak element. I’d rather it be the stock bulkhead than the billet one.

I don’t know whether it was purposely designed not to be compatible (to prevent use?)

If it did fit - I'd think there would be a big risk that the hole sections in the upright part of the billet bulkhead would be damaged by the HBZ arms in an impact.

Stripped down the front enough to get the stock bulkhead back in. It was pretty straightforward from then onwards apart from the sway bar situation.

No sway bar, probably no problem. Bearing in mind that these HBZ bumpers will inevitably vary one to the other – this is just my installation experience.

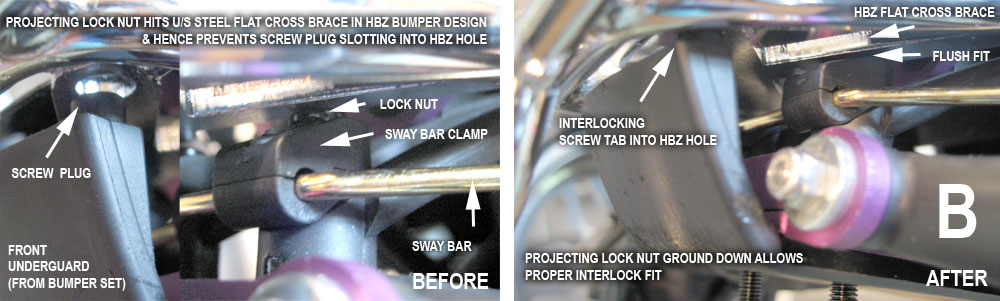

The captive lock nut in the top sway bar clamp prevented the flat cross brace in the HBZ bumper from interlocking with the underguard (skidplate) screw postions. See pic.B

Probably important as these two screws / underguard ‘plugs’ are the main fixing for the bumper, the other being the arm c-clips.

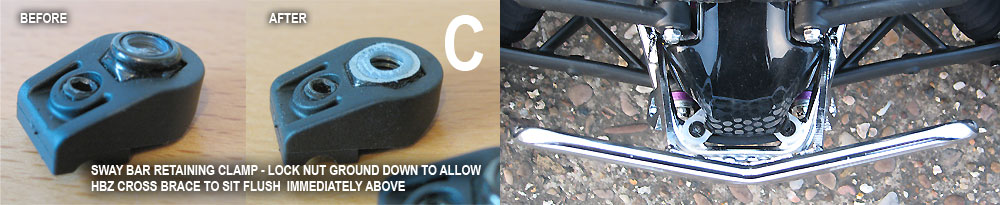

The nuts were ground down (pic C) to allow the cross brace / bumper to fit flush immediately above the clamps. This allowed the screw plugs to fit easily into the HBZ holes.

Just as a side note, the Lunatik bumper is more of a rigid type being anchored top and screwed bottom. The HBZ one is only fixed at the top with two screws into the top of the underguard/skidplate of the stock bumper set.

From initial observations it would seem that this would have a bit more flex in a head-on hit, for the above fixing reasons. Probably a good thing.

That is to say, the stock underguard / skidplate / front bumper - call it what you like (#85420/3) is designed to have some flex in it. Admittedly not enough to save the chassis from a bad crash, but some nonetheless. The arms of 85420/1 which thread through the upright part of the bulkhead, and are restrained by the c-clips (85420/8 ) will also have some lateral movement.

There are a few good bumper options out there and certainly room for more.
I think a comprehensive bumper design with some sort of spring steel plate / crumple zone behind the underguard would not be a bad thing (in conjunction with Diegos bottom plate / TRs top plate) –
I feel a draft design coming up for some thoughts later.

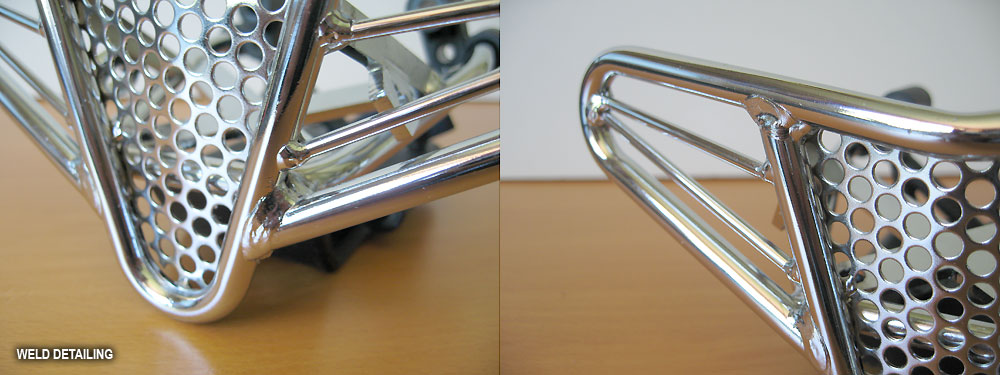

My only other comments are re the layout of the perforated mesh – IMO should have been symmetrically laid, horizontally or vertically, rather than random.
Also watch out for any rear side sharp edges on the mesh, may want to file them down carefully.

It would be interesting to know if anyone else has had any issues with the sways / billet bulkheads etc?
