Rametch Billet Wheels - Tarmacs - Some observations

Discussion in HPI Baja Tires and Wheels forum, started by Baja Storm.

OBR
Reply

Thread Tools
  #1
Old 05-01-2008
Baja Storm Baja Storm is offline
Baja Expert
Baja Maniac

Join Date: Oct 2007
Location: Notts, UK
Posts: 5,269
Trader Feedback: (27)
Baja Storm is on a distinguished road
Rametch Billet Wheels - Tarmacs - Some observations

Just a few observations re Ramtech billet wheels, tarmac buster tyre design, beadlocks etc.

First of all – let's be clear that I love my Ramtech rims!

Don’t really want to talk taping or gluing here, as its been discussed in length elsewhere, however it does have some bearing on the subject.

Some areas have been touched on briefly a while back. All is great in hindsight, but I did not pick this up early enough in my research. Just thought I’d give this important item a little more exposure - especially as it may have contributed to a few tyre failures.


HostileHobby give some great advice once you receive their tyres (don’t think its on the HH website) – “The HPI wheels often have a sharp lip on both edges of te outer whell ring. Be sure to sand this area smooth with sandpaper to ensure the longest life for your new tires. ….”
This advice will of course apply to whatever tyre is being run.

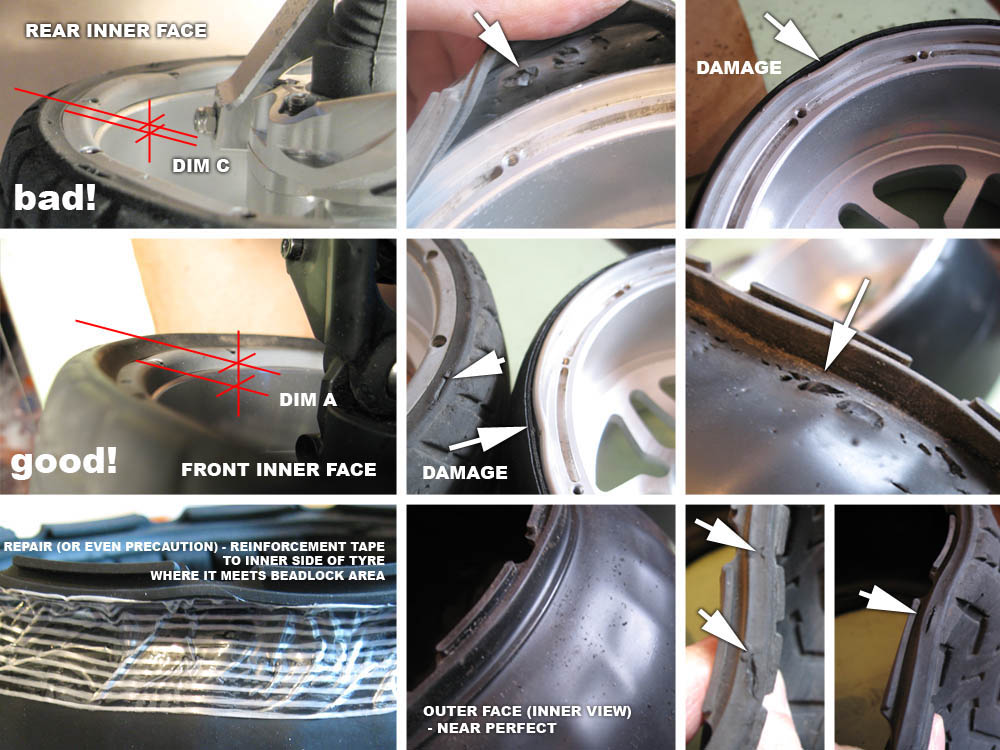

The rear tarmacs in the pics are the original first set installed and were not belted (taped) – foams were glued. Current ones have been run for a few months and are belted (along centre of tyre only, foams are glued) – checks will be made shortly on the condition of these.

A sharp edge exists on the Ramtech Billet wheels – (please shout up if I’m the only one with this - but could not find any other info) – which needs to be dremelled down smooth.

Granted, the lack of belting will no doubt have contributed to the stress on the tyres, but the sharp edges D will also have been a major factor.

The lack of side wall (see DIM C) to the inner rear tyres is a key weakness with the tarmac buster design (or potentially any design, based on the differing diams of the inner and outer faces of the stock wheels) – means potential damage can occur to the wheels in this little protected area – not good if you’re running billet wheels. The foam is also thinnest at this point.

The front tarmac design is great – it has a thickened projecting bead on the inner face (DIM A). There is no damage, fractures, stress marks anywhere on the tyres or wheels.

This is the only area that has been damaged on the rear wheels. All other parts have suffered no damage.

A ‘heavy duty’ inner beadlock design (similar to the outer ones) would not go amiss and help protect both the side wall (or lack of it) and wheel rims, particularly if running alu ones. Extenders may of course be a requirement for clearance.

I know some key manufacturers have already / are addressing the thickening of the bead wall dim in the latest tyre designs (and also in their on road tyres?…please)

Any thoughts..anyone had similar issues?

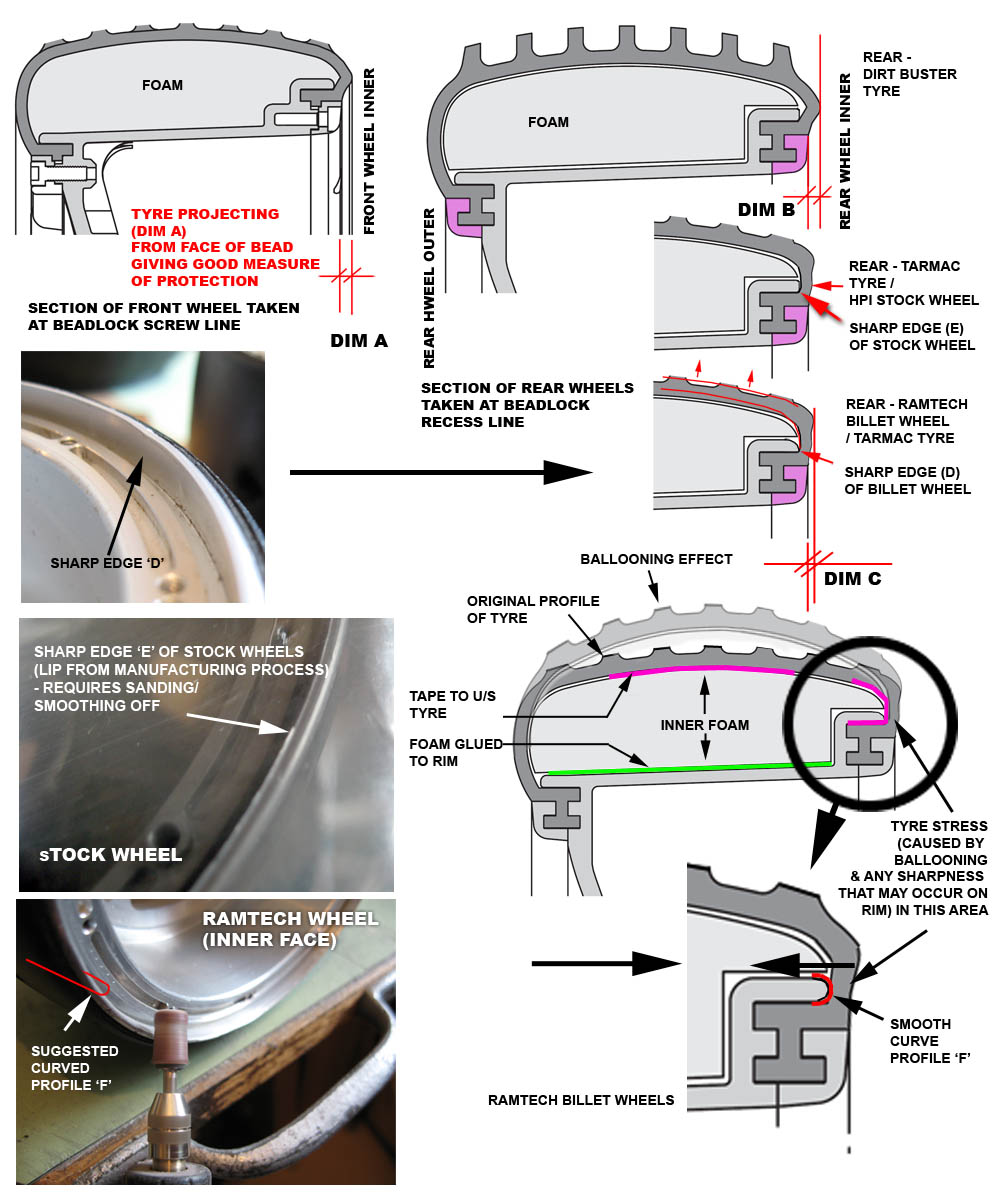

NB.The illustrations are based on the rtr tyre wheel section (page 26 RTR manual) - the SS manual does not contain the relevant diagrams.
Reply With Quote
  #2
Old 05-01-2008
DIABLOTAC78 DIABLOTAC78 is offline
Baja Freak
Baja Maniac

Join Date: Nov 2006
Location: Athens, Greece
Posts: 459
Trader Feedback: (0)
DIABLOTAC78
all i can say is bravo well done bajastorm , they should do something for the rim sharp edge.
Reply With Quote
  #3
Old 05-01-2008
bigbanko bigbanko is offline
Baja Freak
Baja Maniac

Join Date: Apr 2007
Location: Australia
Posts: 252
Trader Feedback: (0)
bigbanko is on a distinguished road
Some great info there.

Thanks for taking the time to put together an in depth illustration of usefull information.
I am sure many will benefit from it.
Reply With Quote
  #4
Old 05-01-2008
USABaja5 USABaja5 is offline
Banned
Baja Maniac

Join Date: Oct 2005
Posts: 14,016
Trader Feedback: (9)
USABaja5 is an unknown quantity at this point
Hell, I never noticed that. I'll put a radius on the next run.
Reply With Quote
  #5
Old 05-02-2008
Silverback RC Products Ltd Silverback RC Products Ltd is offline
Baja Expert
Baja Maniac

Join Date: Oct 2006
Location: Edinburgh, Scotland
Posts: 5,632
Trader Feedback: (22)
Silverback RC Products Ltd is an unknown quantity at this point
Some heavy duty inner plastic beadlocks (not the current HPI offerings, but something much stronger ). If the rings also were slightly thicker (+1mm perhaps) at dimension C of the rear inner edge would offer substantially greater protection to any rim. The beadlock would absorb more of the impact, and believe me there are some plastics that can really take a beating.
Reply With Quote
  #6
Old 05-02-2008
Monsterman's Avatar
Monsterman Monsterman is offline
Secret Decoder Ring Owner
Baja Maniac

Join Date: Dec 2005
Location: North West Pa
Posts: 103,686
Trader Feedback: (70)
Monsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond reputeMonsterman has a reputation beyond repute
BS you went out of your way on this one bud!! Real interesting and nice info to know for those thinking about or who already own a set of the awesome Ramtech Rims.. Great info and pictures all in one place NICE JOB
__________________

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Come Find Me On Facebook-
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Chris
Reply With Quote
  #7
Old 05-02-2008
USABaja5 USABaja5 is offline
Banned
Baja Maniac

Join Date: Oct 2005
Posts: 14,016
Trader Feedback: (9)
USABaja5 is an unknown quantity at this point
I was concerned mostly with the side to side type of flexing, and never really thought of the ballooning.
Reply With Quote
  #8
Old 05-02-2008
Silverback RC Products Ltd Silverback RC Products Ltd is offline
Baja Expert
Baja Maniac

Join Date: Oct 2006
Location: Edinburgh, Scotland
Posts: 5,632
Trader Feedback: (22)
Silverback RC Products Ltd is an unknown quantity at this point
Its a relatively simple fix though Rob, and just makes a great product even better.
Reply With Quote
  #9
Old 05-02-2008
Diemaster Diemaster is offline
Baja Freak
Baja Maniac

Join Date: Apr 2007
Location: San Bernardino, CA (SoCal)
Posts: 2,464
Trader Feedback: (5)
Diemaster is on a distinguished road
WOW is all i can say. Great pic! i can HONESLY say that ancered ALL my tire questions!.
Reply With Quote
  #10
Old 05-02-2008
deznuts84 deznuts84 is offline
Baja Expert
Baja Maniac

Join Date: Feb 2006
Location: N. Brookfield ,Massachusetts
Posts: 10,169
Trader Feedback: (40)
deznuts84
Wow bajas storm it looks like you did your home work, great info!!
Reply With Quote
  #11
Old 05-02-2008
kongman kongman is offline
Baja Freak
Baja Maniac

Join Date: Sep 2007
Location: brissy, australia
Posts: 380
Trader Feedback: (0)
kongman is on a distinguished road
i was wondering why the ramtechs where chewing up the tires .......i had exactly the same brobs running on dirt.............
Reply With Quote
  #12
Old 05-02-2008
Baja Storm Baja Storm is offline
Baja Expert
Baja Maniac

Join Date: Oct 2007
Location: Notts, UK
Posts: 5,269
Trader Feedback: (27)
Baja Storm is on a distinguished road
Thanks guys! Good to know I wasn't imagining it all
Reply With Quote
  #13
Old 05-02-2008
DIABLOTAC78 DIABLOTAC78 is offline
Baja Freak
Baja Maniac

Join Date: Nov 2006
Location: Athens, Greece
Posts: 459
Trader Feedback: (0)
DIABLOTAC78
mad scientist thinks that way well done


Quote:
Originally Posted by Baja Storm View Post
Thanks guys! Good to know I wasn't imagining it all
Reply With Quote
  #14
Old 05-02-2008
merlinuk merlinuk is offline
Baja Freak
Baja Maniac

Join Date: Feb 2008
Location: Middlesbrough, Teesside, UK
Posts: 1,119
Trader Feedback: (8)
merlinuk is on a distinguished road
Top work fella, looks like we've all learnt something
Reply With Quote
  #15
Old 05-02-2008
IMADMAN IMADMAN is offline
Baja Freak
Baja Maniac

Join Date: Aug 2006
Location: Oahu, HI.
Posts: 1,207
Trader Feedback: (23)
IMADMAN
I think this is the 2nd. thread I have read that you made. I will say it again. Your use of highly detailed pics and detailed descriptions really make the thread enjoyable to read. You would'nt happen to be a magazine editor would you? Also what kind of camera are you using to take such clear photos?
Great job again!!!!
Reply With Quote
  #16
Old 05-02-2008
oline897 oline897 is offline
Baja Freak
Baja Maniac

Join Date: Feb 2007
Location: Minnesota
Posts: 271
Trader Feedback: (2)
oline897 is on a distinguished road
Thanks for taking the time for such a detailed write-up!
Reply With Quote
  #17
Old 05-02-2008
Baja Storm Baja Storm is offline
Baja Expert
Baja Maniac

Join Date: Oct 2007
Location: Notts, UK
Posts: 5,269
Trader Feedback: (27)
Baja Storm is on a distinguished road
Thanks guys

IMADMAN,
Camera is Canon Ixus/Ixy 10mega pixels on macro setting - no flash.

No such luck re magazine editor - I'd be working with the models all day - unfortunately have to settle with working with 3d models instead.
Reply With Quote
  #18
Old 05-02-2008
miketroll357 miketroll357 is offline
Baja Freak
Baja Maniac

Join Date: Jan 2008
Location: Cary, N.C.
Posts: 1,191
Trader Feedback: (0)
miketroll357 is on a distinguished road
Good post bro, lots of good info there.......
