ESP 30.5cc Installed into Road Racer
HPI Baja Projects
 |
|
03-19-2008, 11:16 PM
|
 |
Advertiser
Baja Maniac
|
|
Join Date: Oct 2007
Location: Notts, UK
Posts: 5,495
|
|
|
ESP 30.5cc Installed into Road Racer
Well - just got round to installing the 30.5 into the old baja.

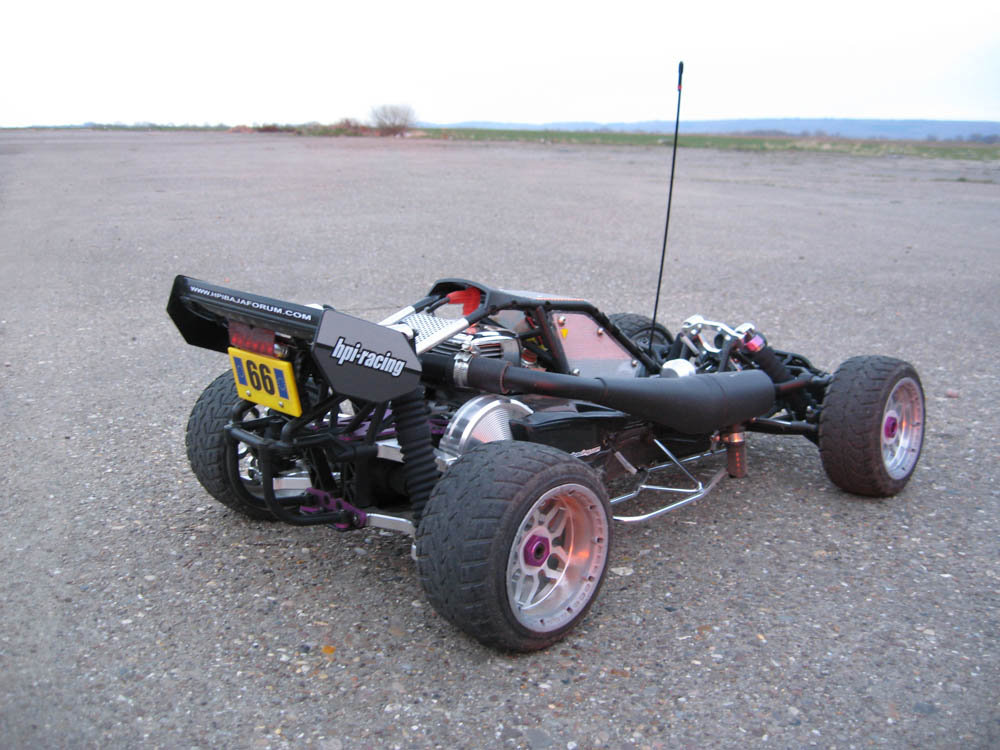

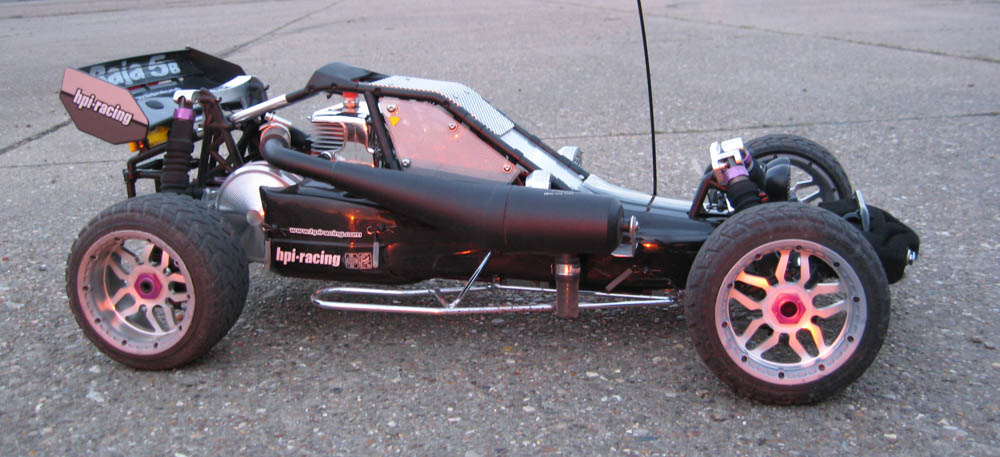

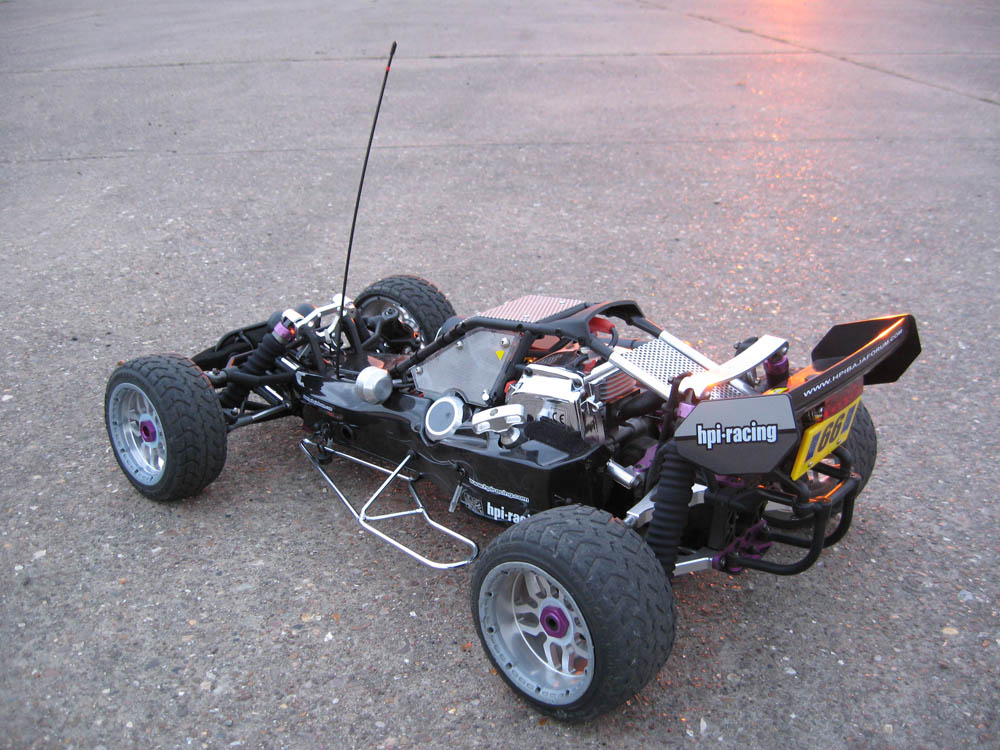

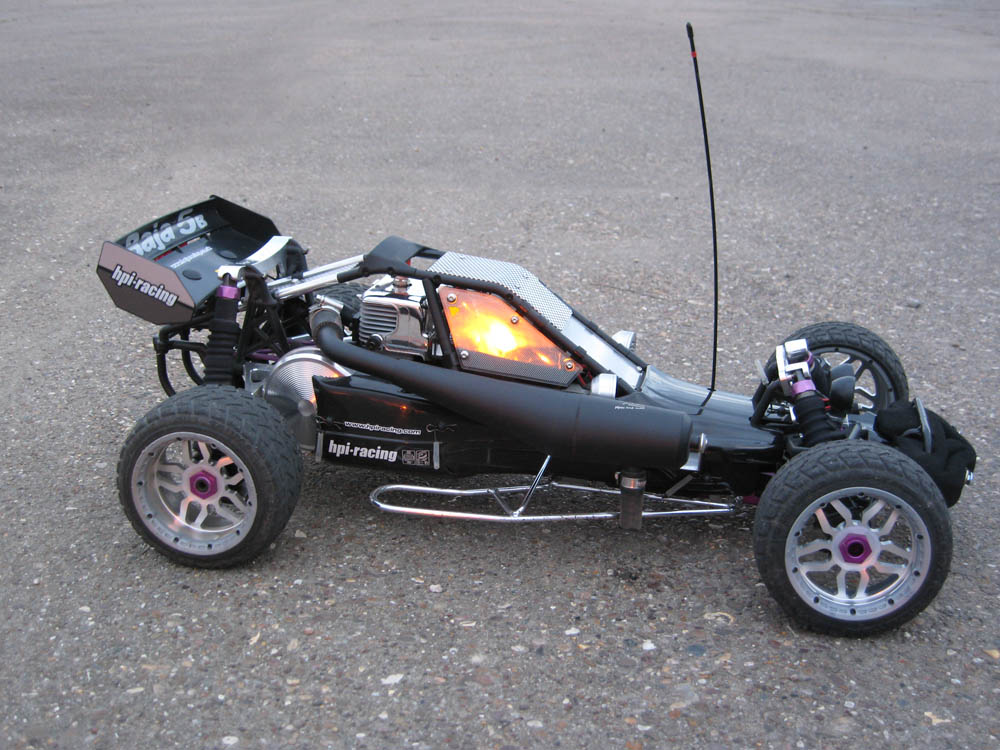

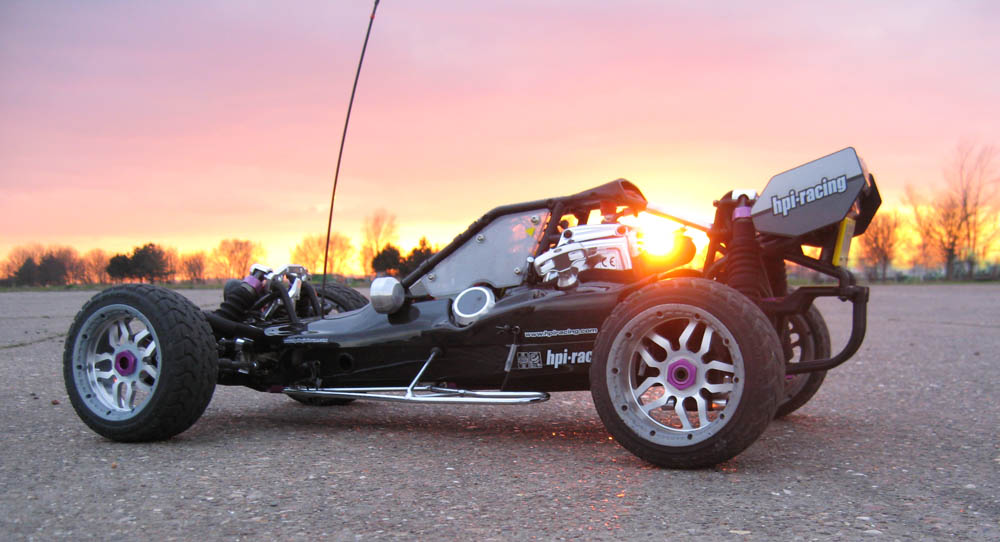

Had some fun, particularly over the last couple of days testing her out - and man shes on fire! Heres some pics from tonight - it was a great sunset.........................
see...
Thought I'd share the installation and some of the typical mods done during the install - Anyway pics say a lot more as we all know, so here goes -

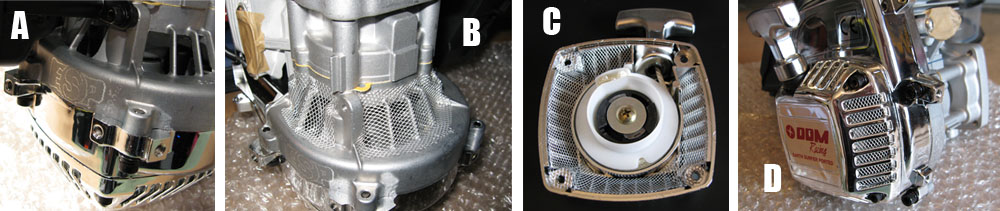

A - 30.5 ESP - thanks DDM/Doug. B - Engine underside intake alu mesh, C - Pull starter alu mesh

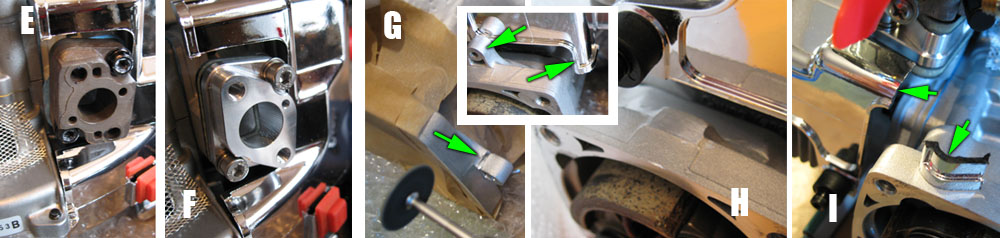

E - stcok manifold changed to F, ADA billet mainfold / teflon gaskets
G, H - Engine mounting tab dremelled away. I - engine cover projecting tab cut back

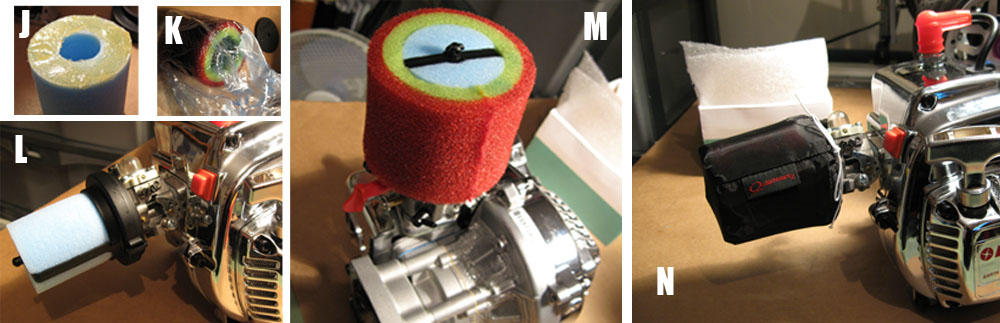

J - Stock inner filter oiled and greased lip, K - TGN pre filter all oiled up. N - outerwears nicely wraps up the package.

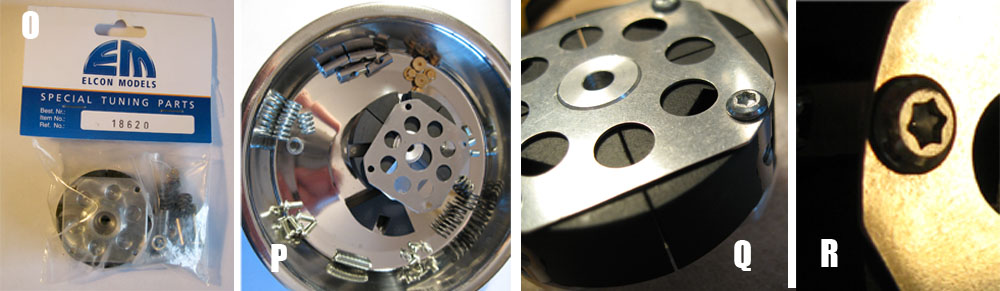

O - Elcon clutch arrives! P - Elcon parts - dark springs used. Q -Hex screw heads slighlty ground for clearance of clutch bell (TR steel). R - detail of screw head

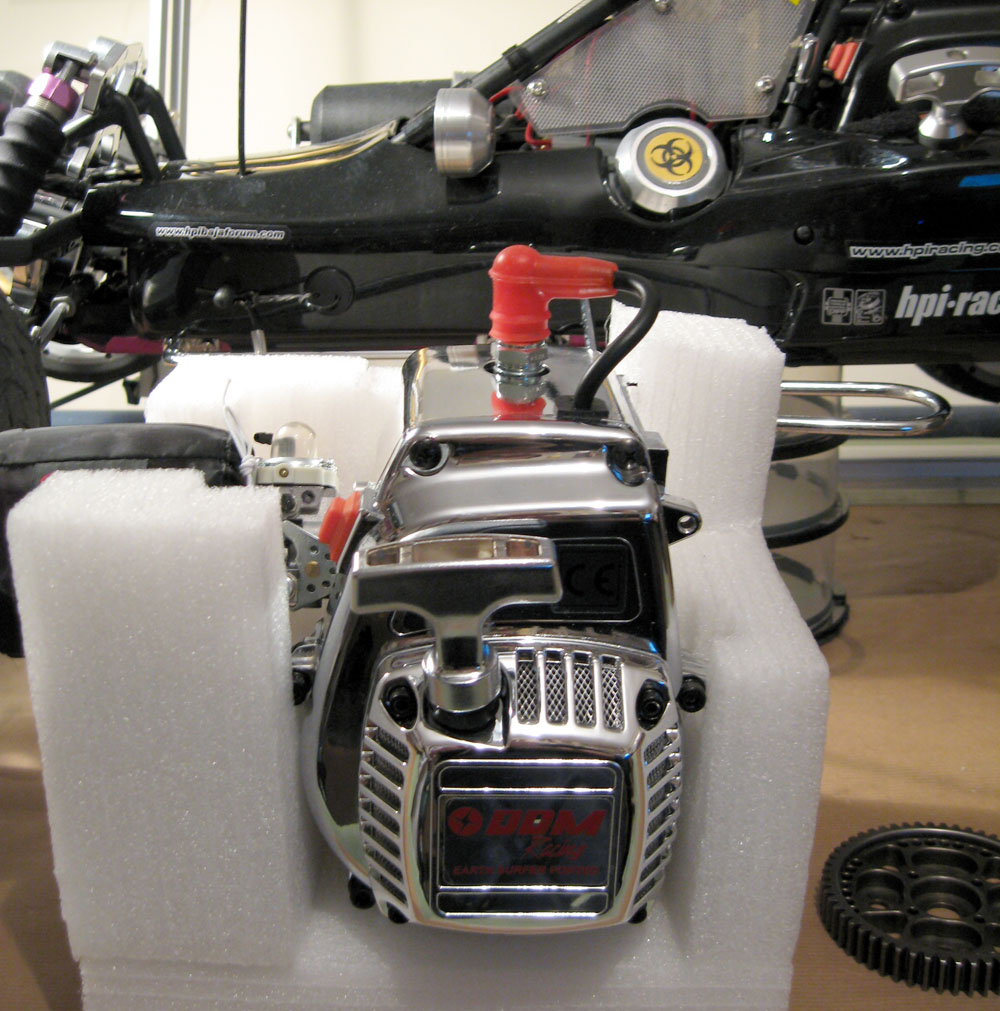

Engine prepped and ready for install

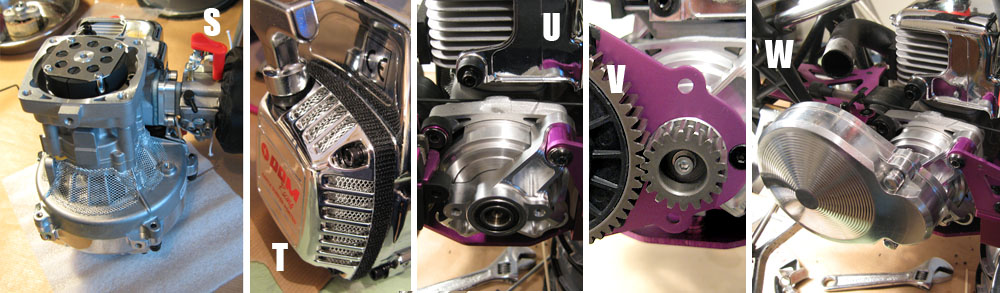

S - Stock clutch removal and elcon install using piston stopper and flywheel puller. T - pull starter outerwears velcro applied. U - Ramtech clutch bell holder, Modified RC's Clucth cover and Turtle Racing Steel clutch bell installed.
V - Robinson Racing 18/55 top speed set installed.
W- Modified RC's gear cover and FatboyRC's billet pins installed.

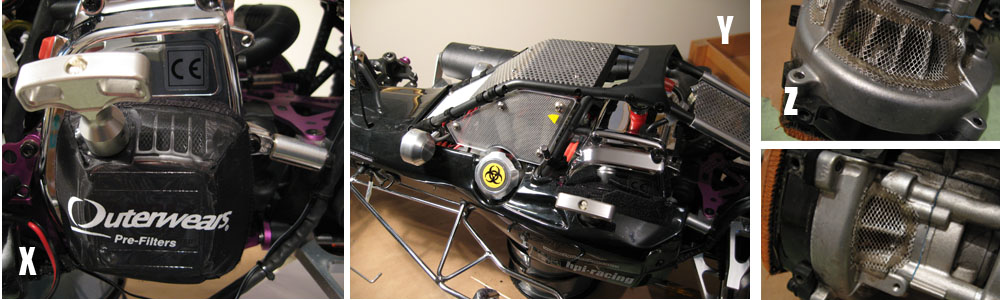

X - pull starter outerwears fitted. Y - Done!
Z - old 23cc mesh mod held up just perfect - Glue - Evo Stick 'Serious Glue' -30deg-+130degC.
Finally just a few comments re the running -
Its certainly a lot harder to pull due to the compression etc over the 23 stocker - took me by surprise.
Took ages to get it running! Unwittingly flooded the engine - went thru the usual procedures found on the forum.
Up and running great.
Followed Dougs instructions to the letter re carb tuning / plug colour etc.
Had a lotta fun this evening......it's an awesome engine! - but you already knew that!!
|
 Today
|
|
|
Advertising
Google Adsense
|
|
|
|
Sponsored Links
|
03-19-2008, 11:22 PM
|
 |
Bajastafarian Madnes
Baja Maniac
|
|
Join Date: May 2006
Location: Tri City area Michigan
Posts: 24,093
|
|
|
nice wrap up on the update!!! great pics too.
that sunset looks killer reflecting off the body and the rims!
Nice Job all around!
__________________
take all complaints to my EX WIFE. she listens well!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
www.michiganbaja.com
|
03-20-2008, 01:20 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: Oct 2007
Location: Huntingtown,MD
Posts: 590
|
|
|
Very nice. I enjoyed the pics!
|
03-20-2008, 01:27 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: Mar 2008
Location: pennsylvania
Posts: 1,299
|
|
|
Wonderful pic's,very nice machine!
|
03-20-2008, 01:39 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: Dec 2006
Posts: 6,174
|
|
|
That is one bad sumbitch!!! And your attention to detail is impeccable.
|
03-20-2008, 01:52 AM
|
 |
Team Twisted RC
Baja Maniac
|
|
Join Date: Nov 2006
Location: S.E Michigan
Posts: 7,258
|
|
|
Wow very nice!! Thats one hell of a pavement pounder Nice job storm and the pics are great.
|
03-20-2008, 02:12 AM
|
|
Banned
Baja Maniac
|
|
Join Date: Feb 2007
Location: NOR CAL 707/
Posts: 5,155
|
|
|
Hey so thats where my motor ended up...just kidden I hear mine will be here in the am...looks nice!!!!!!!!!!!!!!!
|
03-20-2008, 05:11 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: Sep 2006
Location: waterford mich
Posts: 512
|
|
|
nice road racer good job with pics i have a hard time with one pic lol.baja looks sweet looks low and mean .with that motor you will be buying more tires now.nice job
|
03-20-2008, 05:14 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: May 2007
Location: Minden, NV
Posts: 8,922
|
|
Love the way you set up the pictures in the post, like a magazine article . Where's the pictures of it blowing the tires off?
|
03-20-2008, 05:17 AM
|
 |
Senior Member
Baja Maniac
|
|
Join Date: Jan 2007
Location: Tucson, AZ
Posts: 4,872
|
|
|
Looking good !!! I love the looks of that Baja !!!
|
03-20-2008, 05:18 AM
|
|
Senior Member
Baja Maniac
|
|
Join Date: Aug 2006
Location: Oahu, HI.
Posts: 2,039
|
|
Quote:
Originally Posted by boarder4twnty
Love the way you set up the pictures in the post, like a magazine article . Where's the pictures of it blowing the tires off? |
I agree with B420, the quality of the pics and the step by step progress w/ pics are outstanding!!!!!!!!!
|
03-20-2008, 09:01 AM
|
|
Member
Baja Maniac
|
|
Join Date: Mar 2008
Posts: 53
|
|
|
love those rims wherd u get them??
|
03-20-2008, 11:41 AM
|
|
Advertiser
Baja Maniac
|
|
Join Date: Oct 2007
Location: Notts, UK
Posts: 5,495
|
|
Thanks for all your comments guys - they are very much appreciated - I gotta say, I really enjoyed the install.
Quote:
Originally Posted by beerman
nice road racer good job with pics i have a hard time with one pic lol.baja looks sweet looks low and mean .with that motor you will be buying more tires now.nice job
|
Yep - more tyres are on order! - some HH mini MX meds should be here soon -want to see what traction these have, and also waiting for the slicks.
Quote:
Originally Posted by boarder4twnty
Love the way you set up the pictures in the post, like a magazine article . Where's the pictures of it blowing the tires off? |
Pics of the tyres blowin' off coming real soon! waiting for my camera man!
Quote:
Originally Posted by xxx_baja_xxx
love those rims wherd u get them??
|
Those are Ramtech's billet rims from TGN.
|
03-20-2008, 04:33 PM
|
 |
Contributor
Baja Maniac
|
|
Join Date: May 2006
Location: NW Indiana
Posts: 7,863
|
|
|
Great write up and pics, that's one sweet looking Baja.
__________________
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
03-20-2008, 04:36 PM
|
 |
silverbackrcproducts.com
Baja Maniac
|
|
Join Date: Oct 2006
Location: Edinburgh, Scotland
Posts: 6,700
|
|
|
Very nice looking baja, perhaps a nice billet wing to finish it off?
__________________
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
03-20-2008, 06:39 PM
|
 |
Contributor - All
Baja Maniac
|
|
Join Date: Apr 2007
Location: The Netherlands
Posts: 1,960
|
|
very nice, very nice, me like it big time!
You got one of the best lookin Bajas out there!
And excellent write up and pics, you should hook up with FastEddy for tutorials , he does video, you do pics
Now let's see your Baja in some action vids!
|
03-20-2008, 07:05 PM
|
 |
Da Ding Ding ding ding
Baja Maniac
|
|
Join Date: Sep 2007
Location: New Hampshire USA
Posts: 1,978
|
|
WOW, what a nice job you've done Storm !
The mesh in the pull start looks killer. Hope to see a vid some day
__________________
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
baja free or die
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Life is tough...it's even tougher if you're stupid. - John Wayne
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
03-20-2008, 08:43 PM
|
 |
Member
1/5th Scaler
|
|
Join Date: Sep 2007
Location: Quakertown, PA
Posts: 46
|
|
|
looks great how did u get the front soooo low? Iwas thinking to do the same to my baja.
|
03-20-2008, 11:06 PM
|
|
Advertiser
Baja Maniac
|
|
Join Date: Oct 2007
Location: Notts, UK
Posts: 5,495
|
|
Thanks guys!
Vids coming real soon....
Quote:
Originally Posted by Sam Bergey
looks great how did u get the front soooo low? Iwas thinking to do the same to my baja.
|
Front is stock no lowering - yet!
|
03-20-2008, 11:36 PM
|
 |
Contributor - All
Baja Maniac
|
|
Join Date: Apr 2007
Location: Saudi Arabia
Posts: 3,450
|
|
great pics, upgrades, ride, shots, engine, yeah looked like a magazine, very nice.
|
